PNK DSL 300 Scroll vacuum pump
Scroll dry pump with excellent performance
Motor power: 0.75Kw
Pumping speed: 12m³/h
Limit vacuum: 0.01 mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DSL Series scroll pump Performance advantage
Specification parameters
| Technical parameter | Company | PNK DSL 300 |
|---|---|---|
| Rated speed | rpm | 1800 |
| Theoretical pumping speed | m3/h | 12 |
| Limit vacuum | mbar | 0.01 |
| Inlet flange | - | KF25 |
| Outlet flange | - | KF25 |
| Input voltage | V | single-phase100-240 |
| Overall dimension | mm | 367×270×250（L×W×H） |
| Motor power | W | 750 |
| Water vapor treatment capacity | g/h | 100 |
| Leakage rate | mbar· l/s | ﹤1×10-6 |
| Noise level | dB(A) | 54 |
| Cooling mode | - | Air cooling |
| Operating ambient temperature | ℃ | 10 to 40 |
| Weight | kg | 25 |

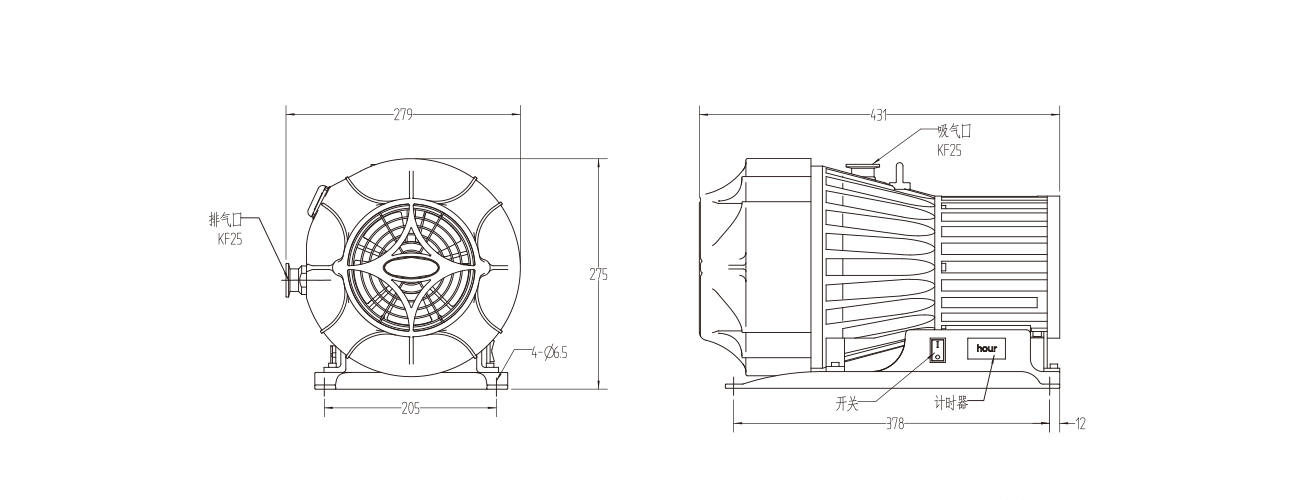

Mounting dimensions

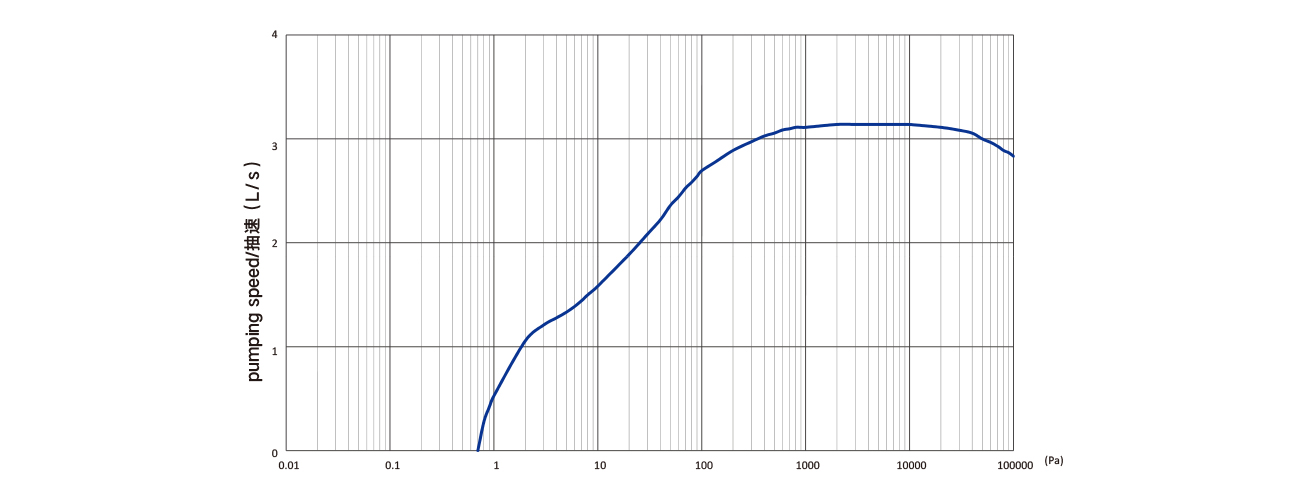

Performance curve
Parts
Download
