PNK PP 200V Piston vacuum pump
Motor power(50Hz): 0.12Kw
Pumping speed (50Hz): 30L/min
Extreme vacuum limit: -84Kpa
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK PP-V Series piston vacuum pumps Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK PP 200V |
|---|---|---|---|
| Flow | L/min | 50 Hz | 30 |
| Pressure | Kpa | 50 Hz | -84 |
| Power | Kw | 50 Hz | 0.12 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 0.45 |
| Voltage | V | 50 Hz | 210/235 |
| Foot hole | mm | 5 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 48 |
| Weight | kg | 1.8 | |
| Mounting dimensions | mm | L100*W74 | |
| Overall dimension | mm | L143*W85*H121 |

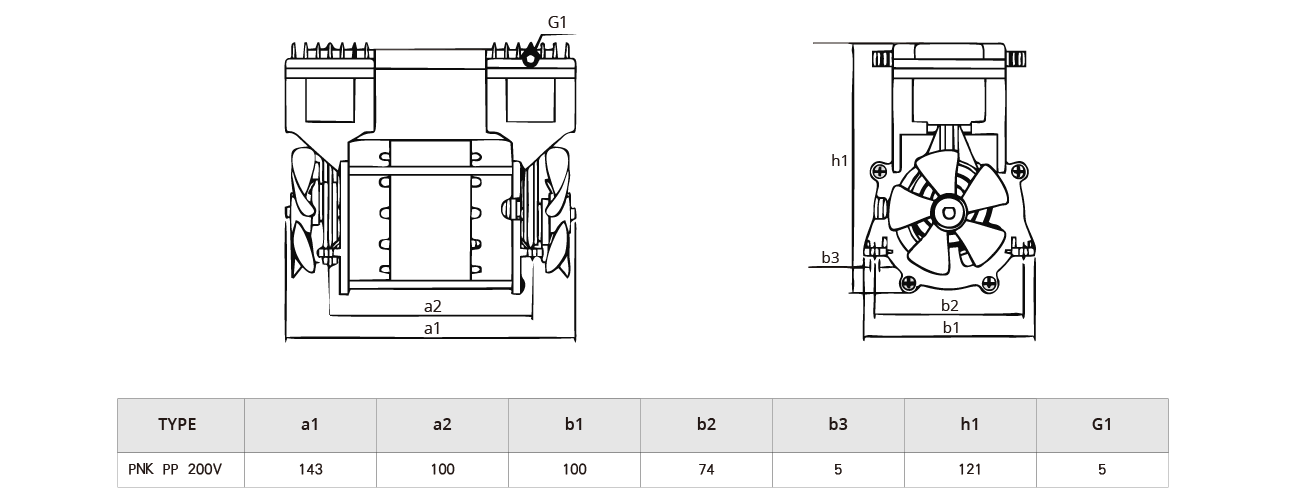

Mounting dimensions

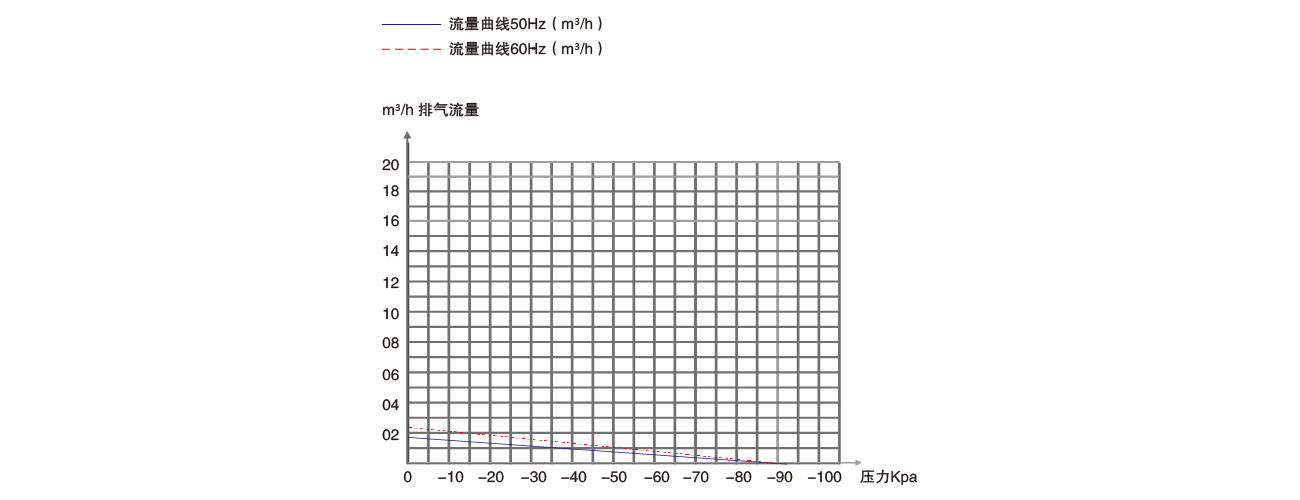

Performance curve
Parts
Download
Our vacuum pump products
