PNK PP 3000V Piston vacuum pump
Motor power(50Hz): 1.10Kw
Pumping speed (50Hz): 280L/min
Extreme vacuum limit: -94Kpa
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK PP-V Series piston vacuum pumps Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK PP 3000V |
|---|---|---|---|
| Flow | L/min | 50 Hz | 280 |
| Pressure | Kpa | 50 Hz | -94 |
| Power | Kw | 50 Hz | 1.10 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 4.20 |
| Voltage | V | 50 Hz | 220/380 |
| Foot hole | mm | 7 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 76 |
| Weight | kg | 17.5 | |
| Mounting dimensions | mm | L246*W127 | |
| Overall dimension | mm | L325*W153*H280 |

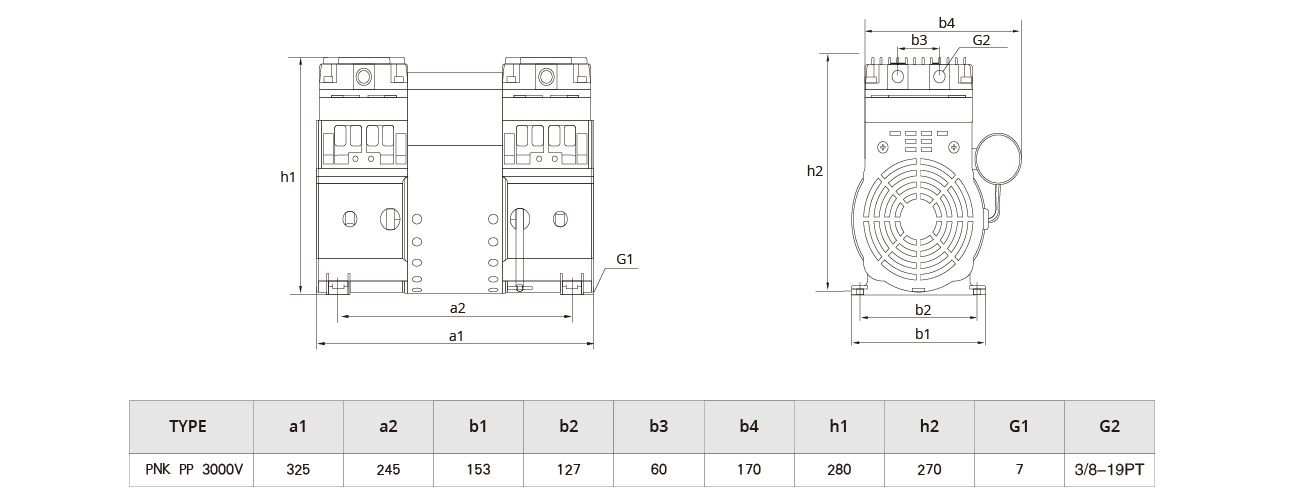

Mounting dimensions

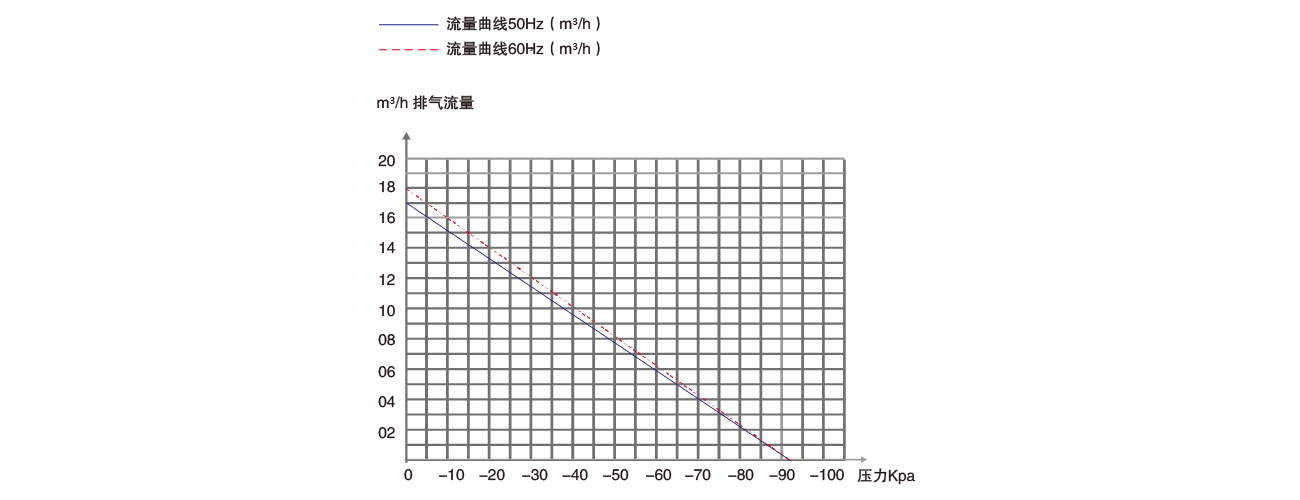

Performance curve
