PNK SP 0200 Single stage rotary vane vacuum pump
Single stage rotary vane vacuum pump with excellent performance and reliability
Motor power(50Hz): 5.5Kw
Pumping speed (50/60Hz): 200m³/h/240m³/h
Limit vacuum: 0.1 mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK SP Series Single stage rotary vane pump Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK SP 0200 |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 200 |
| Limit vacuum | mbar | 50 Hz | 0.1 |
| Nomimal size | 50 Hz | G2"/G2" | |
| Voltage | V | 50 Hz | 345-415/600-720 |
| Power | Kw | 50 Hz | 5.5 |
| Speed | r/min | 1455/1720 | |
| Noise | (ENISO2151) | dB(A) | 67 |
| Oil filling quantity | L | 6 | |
| Weight | kg | 149 |

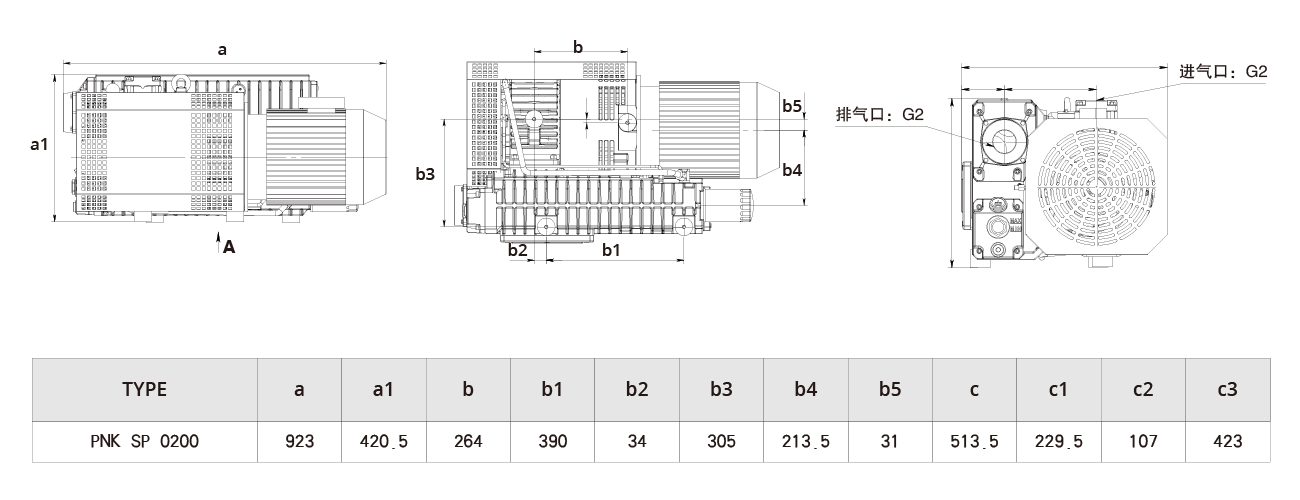

Mounting dimensions

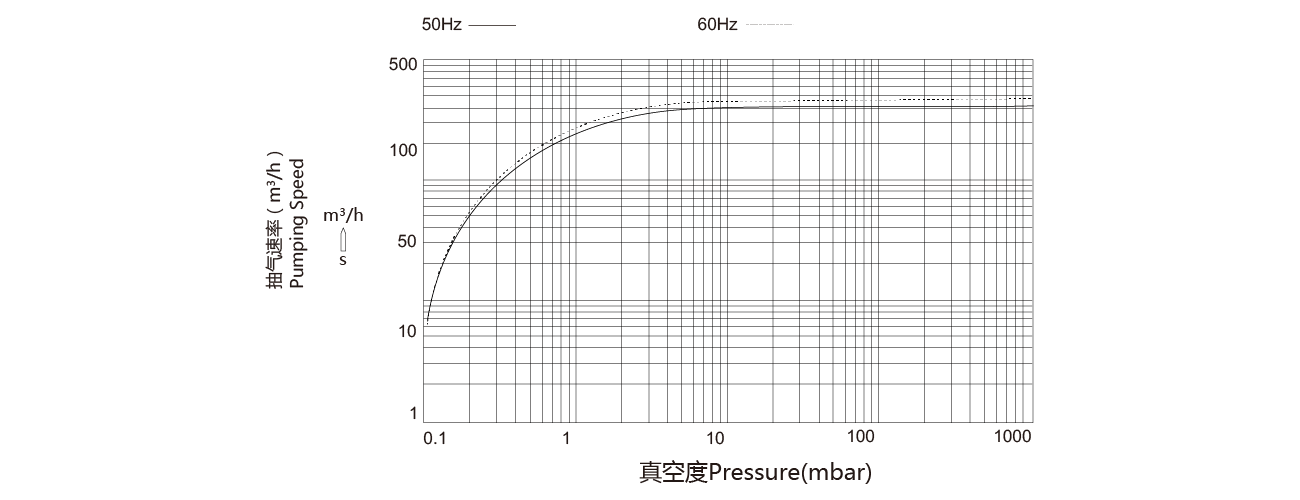

Performance curve
Parts
Download
